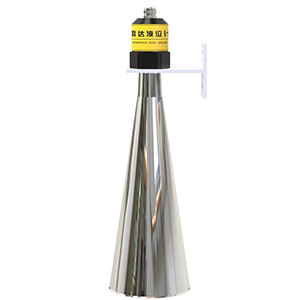

The Water Level Radar RS-RAD N01-VY1 by NiuBoL is a high-performance non-contact radar sensor designed for accurate water level monitoring in rivers, reservoirs, drainage systems, and industrial applications. Using advanced FMCW radar technology operating at 76–81 GHz, the sensor delivers highly precise and stable measurements even in harsh outdoor environments.
Specifications
Parameter Name | Technical Specification |
Brand | NiuBoL |
Operating Frequency | 76GHz – 81GHz (FMCW) |
Range | 0.1m – 65m (max customizable to 70m) |
Measurement Accuracy | ±1mm |
Beam Angle | 6° |
Blind Zone Size | 10cm |
Power Supply Voltage | DC 10V – 30V |
Overall Power Consumption | < 0.2W |
Communication Output | RS485 (standard Modbus protocol) |
Operating Temperature | -40°C – +60°C |
Ambient Humidity | 0% – 95% RH (non-condensing) |
Protection Level | IP67 |
