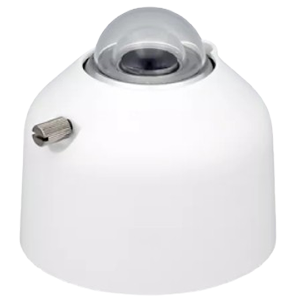

The MS-60S Pyranometer is a high-performance ISO 9060:2018 Class B solar radiation sensor designed for precise and reliable solar monitoring in agricultural, meteorological, and photovoltaic applications. Engineered for long-term outdoor performance, the MS-60S delivers highly accurate irradiance measurements with exceptional stability in varying environmental conditions.
Specifications
| ISO 9060:2018 | Class B |
|---|---|
| Response time 95% | < 18 Sec |
| Zero offset A – Thermal radiation (200W/m²) | ± 5W/m² |
| Zero offset B – Temperature change (5K/hr) | ± 2 W/m² |
| Zero offset C – Total zero off-set | ± 7W/m² |
| Non-stability (change/year) | < 1.5% |
| Non-linearity (100 to 1000W/m²) | ± 1% |
| Directional response (at 1000W/m² | 0 to 80°) | ± 18W/m² |
| Spectral Error | ± 0.2% |
| Temperature response (-20°C to 50°C) | ± 2% |
| Tilt Response (0-90° | 1000W/m²) | ± 1% |
| Additional signal processing error | < 1W/m² |
Technical Features | |
| Wavelength Range | 285 to 3000 nm |
| Maximum Operational Irradiance | 2000 |
| Signal Output | MODBUS 485 RTU, 4-20mA, configurable 0-10mA / 0-1V* |
| Sensor Diagnostic | Internal Humidity Status, Temp. ± 0.1%, Tilt Angle ± 1° |
| Operating temperature | -40 to 80°C |
| Supply voltage | 5 to 30 VDC |
| Power Consumption | < 0.2W (Digital) < 0.7W (Analog) |
| Ingress protection | IP67 |
| Calibration traceability / uncertainty | ISO 17025 / WRR / < 0.7% (k = 1.96) |
| Standard Cable Length | 10m (Optional lengths 20m, 30m, 50m) |
Environmental Research Projects
Agricultural Research Monitoring
Meteorological Weather Stations
Climate Observation Networks
