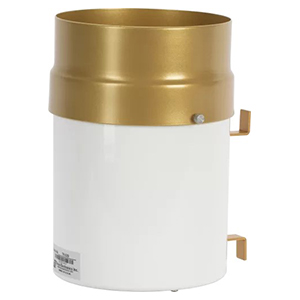

The TE525 rain gauge from Texas Electronics features a 6-inch collection orifice and provides precise rainfall measurements with a resolution of 0.01 inches. Designed for reliable environmental monitoring, it integrates seamlessly with all Campbell Scientific data loggers, making it a dependable solution for meteorological and hydrological applications.
Specifications
| Sensor Type | Tipping bucket with magnetic reed switch |
| Material | Anodized aluminum |
| Operating Temperature Range | 0° to 50°C |
| Resolution | 1 tip |
| Volume per Tip | 4.73 ml/tip (0.16 fl. oz/tip) |
| Rainfall per Tip | 0.254 mm (0.01 in.) |
| Measurement Uncertainty | 1.0% up to 50 mm/h (2 in./h) |
| Cable Type | 2-conductor shielded |
| Orifice Diameter | 15.4 cm (6.06 in.) |
| Height | 24.1 cm (9.5 in.) |
| Cable Weight | 0.1 kg (0.2 lb) per 3.05 m (10 ft) length |
| Tipping Bucket Weight | 0.9 kg (2.0 lb) |
Agriculture
Climate Research
Irrigation Management
Flood Warning
