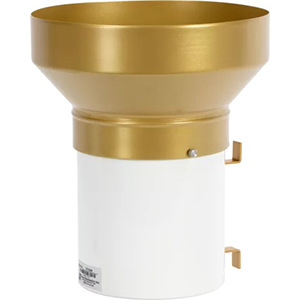

The TE525MM, manufactured by Texas Electronics, is a tipping bucket rain gauge designed to measure rainfall in metric units. It records precipitation in 0.1 mm increments and features a large 24.5 cm collection funnel for accurate rainfall capture. The rain gauge is compatible with all Campbell Scientific data loggers and is commonly used in environmental and weather monitoring applications.
Specifications
| Sensor Type | Tipping bucket with magnetic reed switch |
| Material | Anodized aluminum |
| Operating Temperature Range | 0° to 50°C |
| Resolution | 1 tip |
| Volume per Tip | 4.73 ml/tip (0.16 fl. oz/tip) |
| Rainfall per Tip | 0.1 mm (0.004 in.) |
| Measurement Uncertainty | 1.0% up to 50 mm/h (2 in./h) |
| Cable Type | 2-conductor shielded |
| Orifice Diameter | 24.5 cm (9.66 in.) |
| Height | 29.21 cm (11.5 in.) |
| Cable Weight | 0.1 kg (0.2 lb) per 3.05 m (10 ft) length |
| Tipping Bucket Weight | 1.1 kg (2.4 lb) |
Agriculture
Climate Research
Irrigation Management
Flood Warning
