Introduction to Sensor

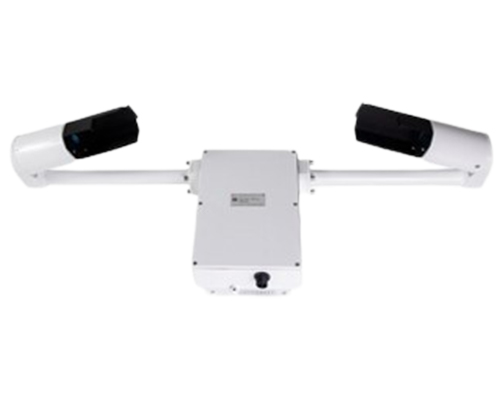

The Visibility and Present Weather Sensor BS300-10 utilizes an advanced forward scatter measurement principle combined with a unique optical design to deliver highly accurate and reliable visibility data in all weather conditions. Its performance remains unaffected by nearby light sources, including flashes and artificial illumination. With a standard measurement range from 10 meters to 10 kilometers — extendable up to 75 kilometers— the sensor is engineered using robust aluminum construction, making it ideal for demanding road and aviation applications.
Specifications
Specifications
| Item | Type A | Type B | Type C |
|---|---|---|---|
| Measurement Range | 10m ~ 10km (Typ.)10m ~ 30km10m ~ 75km | 10m ~ 10km | 10m ~ 10km (Typ.)10m ~ 30km |
| Shell Material | Aluminum Alloy | Stainless Steel (Suitable for Highly Saline and Humid Environment) | Stainless Steel (Suitable for Highly Saline and Humid Environment) |
| Weight (Unpacked) | 3 kg | 5.8 kg | 12 kg |
| Weather Phenomenon | Optional | / | Optional |
| Measurement Elements of Weather Phenomenon Module | Identify four different types of precipitation: drizzle, light rain, moderate rain, and heavy rain.Identify states such as rain, snow, thin fog (smoke), thick fog (smoke), etc.Measure precipitation intensity in the 0–200 mm/h range with 0.1 mm resolution. | Same as Type A | Same as Type A |
| Measurement Principle | Forward Scatter | Forward Scatter | Forward Scatter |
| Resolution | 1 m | 1 m | 1 m |
| Accuracy | ±10% (10m ~ 10km) | ±10% (10m ~ 10km) | ±10% (10m ~ 10km) |
| Data Update Rate | 10 s | 10 s | 10 s |
| Output | RS-485, RS-232 | RS-485, RS-232 | RS-485, RS-232 |
| Operating Voltage | 12 ~ 24 VDC | 12 ~ 24 VDC | 12 ~ 24 VDC |
| Power Consumption | ≤ 5 W | ≤ 5 W | ≤ 5 W |
| Installation | Hoop Installation | Hoop Installation | Hoop Installation |
| Expected Lifespan | Approx. 10 Years | Approx. 10 Years | Approx. 10 Years |
| Operating Temperature | -40°C ~ 50°C @ 0 ~ 100% RH (No Condensation) | -40°C ~ 50°C @ 0 ~ 100% RH (No Condensation) | -40°C ~ 50°C @ 0 ~ 100% RH (No Condensation) |
Features
Applications
Weather Station Bridge Road
High Intense Urban Traffic Area
Environmental Monitoring Sites
Rain and Snow-Prone Areas
