Wall Mounted Barometric Pressure Sensor (BS300-01)

Introduction to Sensor

Wall Mounted BarometricPressure Sensor (BS300-01)

Reliable Performance & High Precision Wall Mounted Barometric Pressure Sensor

The Wall-Mounted Barometric Pressure Sensor features a compact design with high precision and reliable performance, making it ideal for continuous and accurate atmospheric pressure monitoring. Engineered for long-distance data transmission and strong anti-jamming capability, this sensor ensures stable operation even in challenging environments.

It’s versatile application range includes meteorolo- gy, marine research, environmental monitoring, airports, ports, laboratories, agriculture, transporta- tion, and other critical fields where dependable pressure data is essential

Specifications

Specifications

Item

Specifications

Range

600 ~ 1100hPa(mbar)

Resolution

0.1hpa

Accuracy

±0.5hPa

Temperature Drift

≤0.02%FS/°C

Response Size

<1S

Supply

5VDC, 12 ~ 24VDC

Output Signal

RS485, 4-20,0 ~ 5mA V, 0 ~ 1V Optional

Operating Temperature

-40°C ~ 75°C

Ingress Protection

1P65

Storage

10 ~ 60°C @ 20% ~ 6%RH

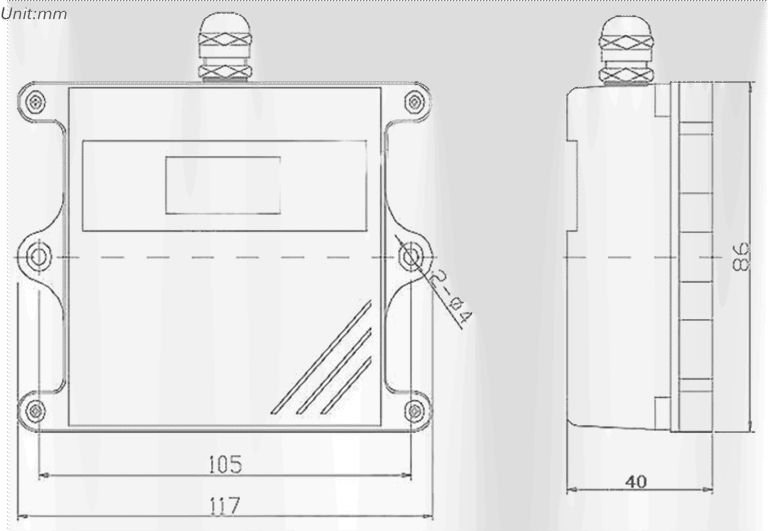

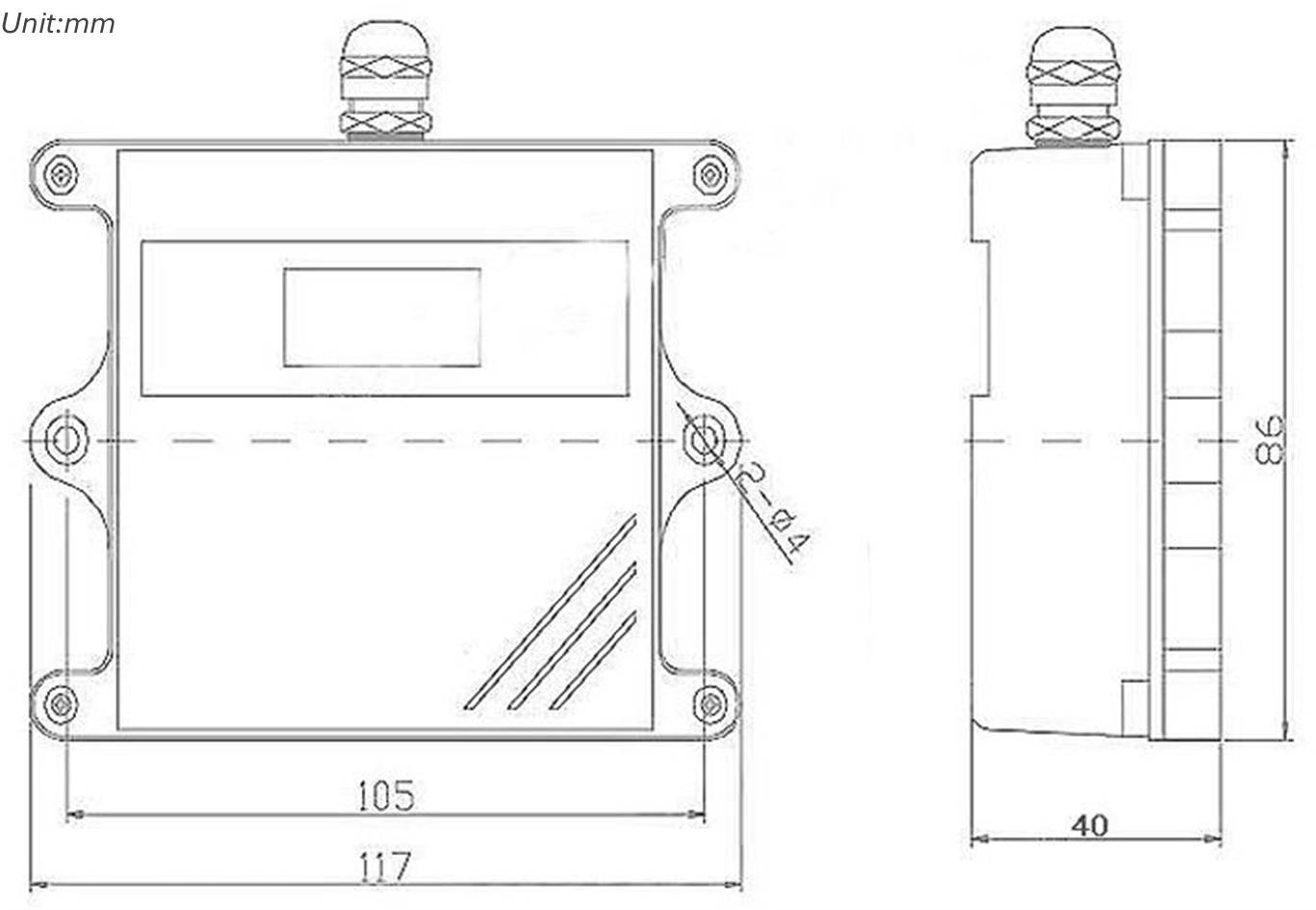

Dimensions

117*86*40mm

Weight (Unpacked)

100g

Features

Special Features

01

High Sensitivity

Detects even small changes with fast and accurate response.
02

Low Temperature Drift

Maintains stable performance across varying temperature conditions.
03

LCD Display Optional

Optional LCD provides clear and convenient on-site readings.
04

Light Construction

Lightweight design enables easy handling and installation.
05

Internal Auto Compensation

Automatically corrects measurement deviations for reliable output.
06

Temperature Compensation

Ensures accurate readings despite temperature variations.
07

Low Power Consumption

Energy-efficient operation suitable for long-term and remote use.
08

High Operational Reliability

Robust design ensures consistent performance in demanding environments.
Applications

Primary Applications

Automatic Weather Stations
Greenhouse & Controlled Environment Agriculture
Wind Resource Assessment
Agriculture and Forestry Monitoring
