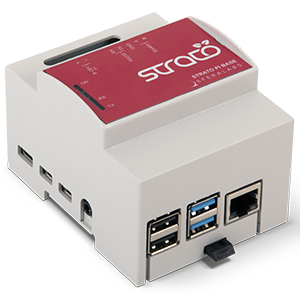

Strato Pi Base is an industrial-grade platform designed to enhance the Raspberry Pi for professional and industrial environments. It adds robust power management, protected serial interfaces, hardware watchdog, RTC, and a secure element, ensuring reliability, safety, and service continuity. The system complies with CE (EMC & Low Voltage), RoHS, FCC, and IC standards, making it suitable for deployment in demanding applications.
| Power supply |
Reverse polarity protection with 2.2A resettable fuse. Surge protection up to ±1000V/2ohms 1.2/50μs |
Current consumption at VS+ 12V⎓ including Raspberry Pi 4, with Ethernet and RS-485 connected, no USB devices |
Actual current consumption may vary based on working conditions |
Current consumption at VS+ 24V⎓ including Raspberry Pi 4, with Ethernet and RS-485 connected, no USB devices |
Actual current consumption may vary based on working conditions |
| Raspberry platform compatibility |
(tested with Pi 4 Model B for regulatory compliance) |
| Serial communication ports |
|
| Baud Rates on COMM ports | 1200 to 115200 |
| ESD-Protection Voltage on RS-232 TX/RX |
|
| ESD-Protection Voltage on RS-485 A/B |
|
| Surge protection on RS-485 A/B | Surge protection up to ±500V/2ohms 1.2/50μs; 600W peak pulse power capability at 10/1000μs waveform |
| Fail safe feature on RS-485 | Yes |
| Electromagnetic immunity compliance |
|
| Real time clock |
|
| Housing | standard 4M for DIN rail |
| Operating temperature |
|
| Storage temperature | -30…+70 °C |
| Relative humidity | 5% to 90% noncondensing |
| Protection degree | IP20 |
| Weight | 150 g |
