The Buraq Integrated Solutions RSS-2-300WL has an integrated radar surface velocity and level meter for contactless measurements of surface flow velocity and water level. Contactless radar technology enables quick and simple sensor installation above the water surface with minimum maintenance. Calculation of the total flow discharge is internally implemented within the instrument by combining surface velocity measurement, water level measurement, and a configured cross-section of the river or channel. Defining the measurement parameters such as profile cross-section, material of the edges, location of the sensor above the water, and all other instrument settings can be easily set with the Buraq Integrated Solutions configuration application using any available communication interface.
Detection distance | 15 m / 30 m |
Speed range | 0.02 m/s to 15 m/s |
Speed resolution | 0.001 m/s |
Speed accuracy | 1% |
Level resolution | 0.001 m/s |
Level accuracy | ±2 mm |
IP rating | IP68 |
Electrical and mechanical | |
Input voltage | 9 to 27 VDC |
Power consumption | 1,3 W operational; 0,235 W standby |
Maximal current | < 750 mA |
Temperature range | -40 °C to +85 °C (without heating or coolers) |
Enclosure dimensions | 150mm x 200mm x 250mm |
Interface | |
Serial interface |
|
Baud rate | 9600 bps to 115200 bps |
Serial protocols | GLX-NMEA Modbus |
Other protocols | SDI-12 |
Analog output | 4-20 mA, programmable velocity, level or flow |
Contactless flow and surface-velocity measurement
Integrated real-time discharge (flow) calculation
Multiple communication options: RS-232, RS-485 Modbus, SDI-12, and 4-20 mA analog output
Complete remote configuration of all parameters
Durable IP68-rated aluminum or stainless-steel enclosure
Early-warning systems for flood risk
Monitoring of irrigation channels and controlled water networks

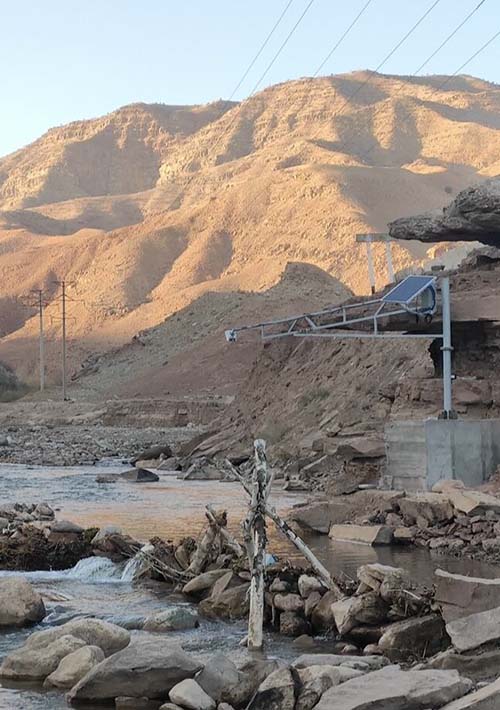

High-accuracy discharge measurement in rivers and natural waterways
Flow tracking in mining channels (e.g., salt and copper mines)
Sewage and wastewater discharge monitoring
