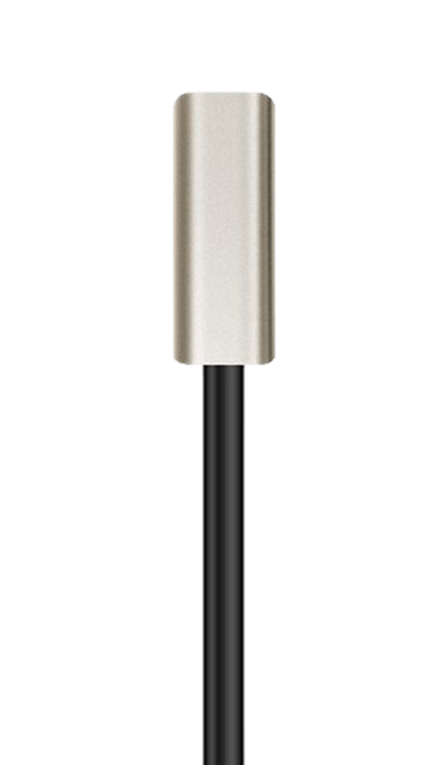

The BS220-01 Paste Type Temperature Sensor utilizes a high-precision thermistor as its sensing element, ensuring excellent accuracy and stability. It features a built-in signal conversion module capable of outputting temperature data as voltage, current, or RS485, depending on system requirements.
Designed to be compact and easy to install, the sensor offers reliable performance with strong linearity, high load capacity, long-distance signal transmission, and robust anti-interference capabili- ties.
Specifications
Item | Specifications | |||
Range | -50 ~ 100°C, -20 ~ 50°C | |||
Supply Voltage | 5VDC,12-24VDC | |||
Accuracy | ±0.5°C | ±0.3°C | ||
Output | 4 ~ 20mA | 0 ~ 5V | RS485 | PT100/PT1000 3-Wires |
Load Capacity | ≤250Ω | ≥1K | ||
Ingress Protection | IP65 | |||
Operating Temperature |
| |||
Weight (Unpacked) | Probe: 85g | |||
Transmitter Module Dimension | 68*66*46mm or Ф25*120mm | |||
Storage Condition | 10°C ~ 60°C @ 20% ~ 60%RH | |||
Surface Mount Adhesive | Attached | |||
