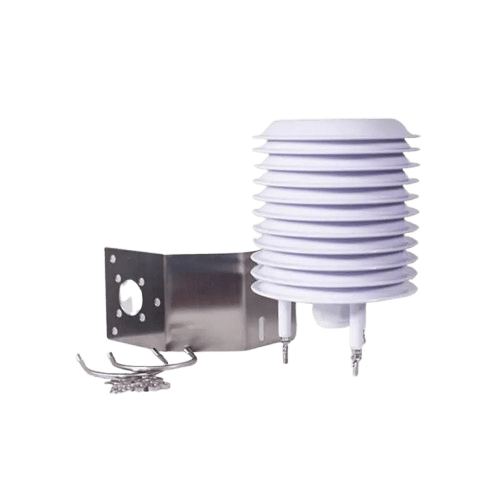

The BS-95 Multi-Plate Solar Radiation Shield is designed to safeguard temperature, relative humidity, and barometric pressure sensors from error-inducing solar radiation and precipitation. It utilizes a specialized combination of plate geometry, high-reflectivity materials, and natural ventilation to ensure optimal shielding performance. The shield effectively reflects sunlight from all angles and blocks both direct solar radiation and ground-reflected rays from reaching the sensors. It also protects instruments from environmental factors such as strong winds, rain, and snow.
Specifications
Item | Specifications |
Number of Plates | 4-20 Plates |
Color | White |
Material | Anti-Radiation ABS Engineering Plastics G Stainless-Steel Screw |
Operating Temperature | -40°C ~ 75°C |

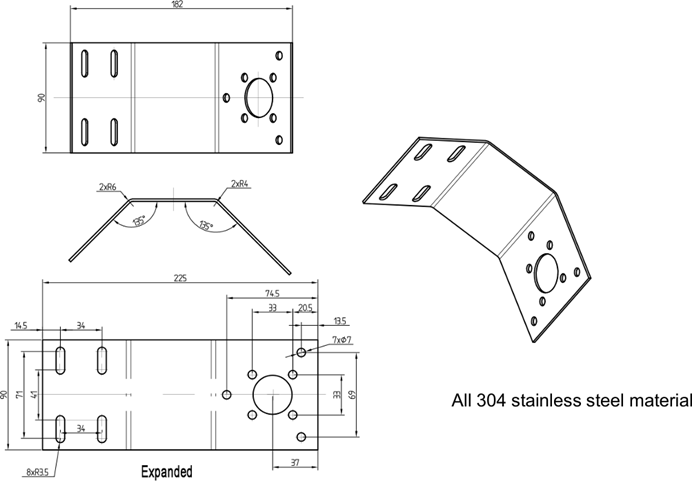

Dimension |
|
Optional Accessories |
|
Weather Monitoring Stations
Agricultural & Environmental Studies
Smart IoT Monitoring Systems
Hydrological & Climatic Research
