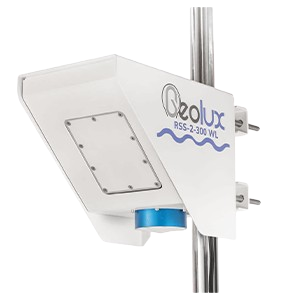

The Geolux RSS-2-300WL is a compact radar-based sensor designed to measure both surface water velocity and water level without direct contact with the water. Using advanced radar technology, it provides accurate flow data while being mounted safely above the surface. Its non-contact design allows for easy installation, reduced wear, and minimal maintenance, making it ideal for long-term hydrological monitoring.
Specifications
| Parameter | Specification |
|---|---|
| Detection Distance | 15 m / 30 m / 35 m |
| Speed Range | 0.02 m/s to 15 m/s / 0.02 m/s to 16 m/s |
| Speed Resolution | 0.001 m/s |
| Speed Accuracy | 1% |
| Level Resolution | 0.5 mm |
| Level Accuracy | ± 2 mm |
| Velocity Sensor Beam Width |
|
| Level Sensor Beam Width |
|
| Sampling Frequency | 1 sps / 10 sps optional |
| IP Rating | IP68 |
| Serial Interface |
|
| Serial Baud Rate | 9600 bps to 115200 bps |
| Serial Protocols | GLX-NMEA, Modbus |
| Other Protocols | SDI-12 |
| Analog Output | 4-20 mA, programmable for velocity, level, or flow |
| Input Voltage | 9 to 27 VDC |
| Power Consumption | 1.3 W operational; 0.235 W standby |
| Maximal Current | < 750 mA |
| Temperature Range | -40 °C to +85 °C (without heating or coolers) |
| Enclosure Dimensions | 150 mm x 200 mm x 250 mm |
Early Flood Warning System
Accurate Discharge Monitoring in Rivers
Flow Tracking in Salt and Copper Mine Channels
Sewage and Waste Water Discharge Measurement
