The BS400-10 Evaporation Sensor uses a high-precision weighing system to accurately measure evaporation loss by detecting weight changes in the evaporation pan. Its stainless steel construction ensures durability, corrosion resistance, and long-term measurement accuracy. Designed for easy integration with automatic weather stations, it is ideal for meteorological and hydrological applications.
Specifications
Item | Specifications |

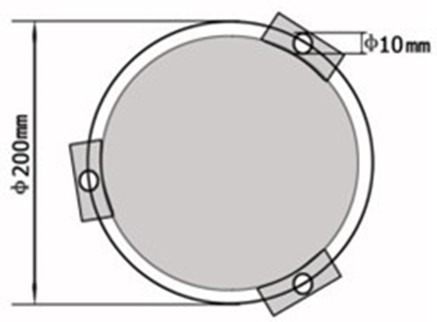

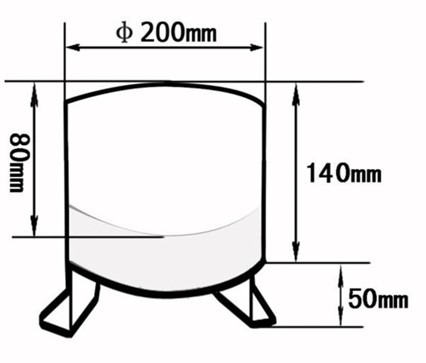

Evaporation Pan | Diameter :φ200mm |
Range | 0-75mm |
Response Time | <1s |
Accuracy | ±1% |
Power Supply | 5V, 12 ~ 24V |
Output | 4 ~ 20mA, 0 ~ 2V, 0 ~ 5V, RS485 |
Operating Temperature | -30 ~ 80°C |
Ingress Protection | IP65 |
Main Material | 304SS |
Weight (Unpacked) | 2.5kg |
Greenhouse
Climate Research
Hydrologic Monitoring
Agroforestry Research
