Introduction to Sensor

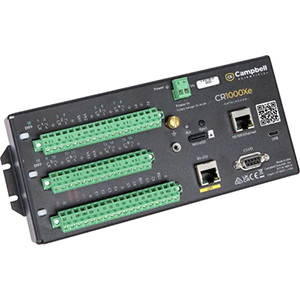

The CR1000Xe DataLogger is a high-performance, research-grade solution designed for precise and reliable data acquisition in demanding applications. It supports a wide range of sensor inputs with flexible I/O configuration, ensuring seamless integration with complex monitoring systems. Engineered for long-term deployment in harsh field environments, the CR1000Xe delivers stable operation with low power consumption.
Features
| Operating Temperature Range |
|
| Storage Temperature Range | -60° to +85°C |
| Operating Humidity | 0–100% RH, non-condensing environment |
| Maximum Scan Rate | 1000 Hz |
| Case Material | Anodized aluminum |
| Analog Inputs | 16 single-ended or 8 differential (individually configured). Two analog inputs can measure 4 to 20 mA or 0 to 20 mA natively. |
| Pulse Counters | 10 (P1 to P2 and C1 to C8) |
| Voltage Excitation Terminals | 4 (VX1 to VX4) |
| Maximum Source/Sink Current |
|
| Communications Ports |
|
| Data Storage Slots | microSD |
| Switched 12 Volt | 2 terminals, plus CS I/O pin 8 |
| Digital I/O | 8 terminals (C1 to C8) configurable for digital input and output. Includes status high/low, pulse width modulation, external interrupt, edge timing, switch closure pulse counting, high-frequency pulse counting, plus UART, RS-232, RS-485, SDM, SDI-12, I2C, and SPI serial-communications functions. Terminals are configurable in pairs for 5 V or 3.3 V logic for some functions. |
| Input Limits | ±5 V |
| Analog Voltage Accuracy |
|
| ADC | 24-bit |
| Power Requirements | 10 to 36 Vdc input |
| Real-Time Clock Accuracy | ±3 min. per year (optional GPS correction to ±10 µs) |
| Internet Protocols | Ethernet, PPP, RNDIS, ICMP/Ping, Auto-IP (APIPA), IPv4, IPv6, UDP, TCP, TLS (v1.2), DNS, DHCP, SLAAC, Telnet, HTTP(S), SFTP, FTP(S), POP3/TLS, NTP, SMTP/TLS, SNMPv3, CS I/O IP, MQTT(S) |
| Communications Protocols | CPI, PakBus, SDM, SDI-12, Modbus, TCP, DNP3 outstation, UDP, NTCIP, NMEA 0183, I2C, SPI, CampbellCloud HTTPS/MQTTS, and others |
| Battery-Backed SRAM for CPU Usage and Final Storage | 4 MB |
| Data Storage | 4 MB SRAM + 72 MB flash (storage expansion of up to 16 GB with removable microSD flash memory card) |
| Idle Current Drain, Average | < 2.0 mA (@ 12 Vdc) |
| Active Current Drain, Average |
|
| Dimensions | 23.8 x 10.1 x 6.2 cm (9.4 x 4.0 x 2.4 in.) Additional clearance required for cables and wires |
| Weight | 0.86 kg (1.9 lb) |
