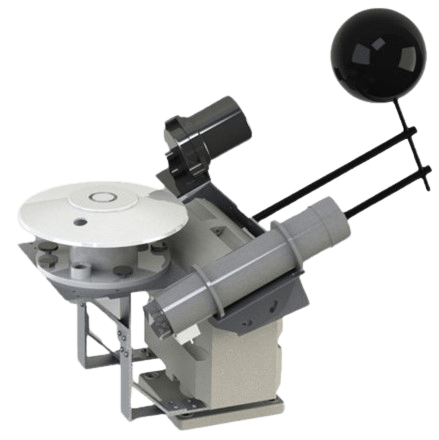

The BS200-08 is a high-performance system for unattended solar radiation monitoring, measuring direct, diffuse, and total solar radiation using precision angle sensors and four-quadrant balanced light sensor technology. Its automatic sun-tracking mechanism ensures sunlight remains aligned with the sensor for accurate measurements throughout the day.
Specifications
Item | Specification | |||
Direct Radiation | Scattered Radiation | Total Solar Radiation (Optional) | ||
Spectral Range | 280 ~ 3000nm | 400 ~ 1100nm | 300 ~ 3200nm | |
Range | 0 ~ 2000W/m2 | |||
Output | 0 ~ 20mV or Customized (RS485…) | |||
Sensitivity | 7 ~ 14μV* W ~ 1*m2 | |||
Internal Resistance | Approx. 100Ω | Approx. 350Ω | Approx. 350Ω | |
Non-Linearity | <±2% | <±2% | <±2% | |
Response Time | ≤25s(66%) | ≤20s(66%) | ≤20s(66%) | |
Stability | ±1%/Year | ±2%/Year | ±2%/Year | |
Temperature Effect | ±1% (-10℃ ~ 40℃) | |||
Operating Temperature | -40℃ ~ 70℃, 0 ~ 100%RH | |||
Tracking System | Motor | Stepper Motor | ||
Tracking Accuracy | <±0.3°(4h) | |||
Torque | 12Nm | |||
Power Consumption | 3W | |||
Tracking Way | Automatic Tracking the Two – Dimensional Angle | |||
Supply | DC12V, AC220V or Other | |||
Speed | 50°/s | |||
Horizontal Angle (Azimuth) | 0 ~ 200° | |||
Vertical Angle (Declination) | -15° ~ 60° | |||
Ingress Protection | IP65 | |||
Operating Temperature | -40℃ ~ 70℃, 0 ~ 100%RH | |||
Communication Interface | RS232, RS485, USB | |||
Storage Condition | 10℃ ~ 60℃ @ 20% ~ 60%RH | |||
Weight (Unpacked) | 6.5kg (Including Sensors) | |||
Automatic Weather Stations
Tourism & Ecotourism Development
Solar Energy Resources Evaluation
Agriculture and Forestry Monitoring
